Racemount 1

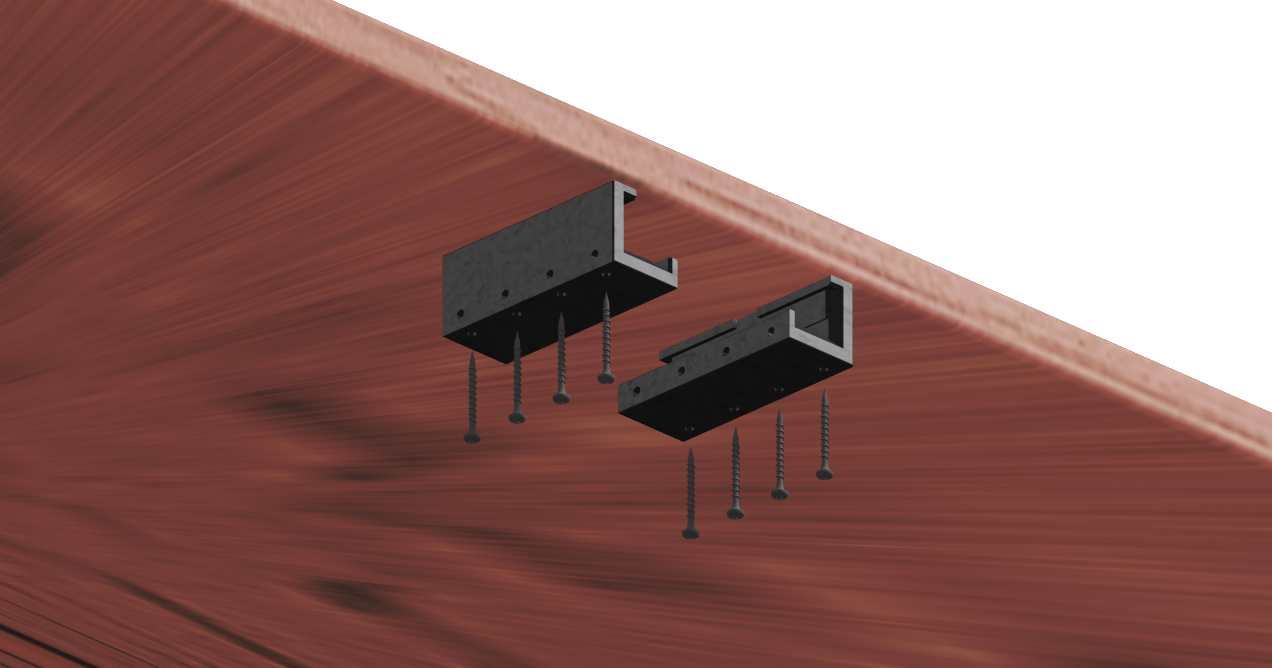

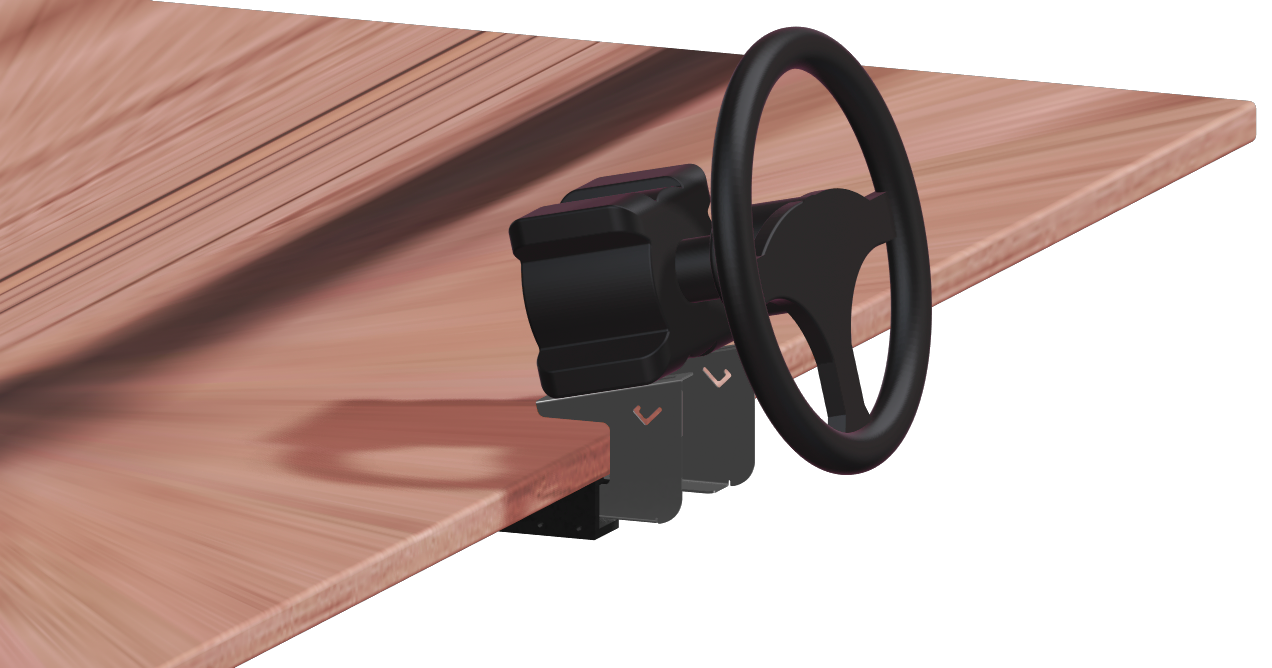

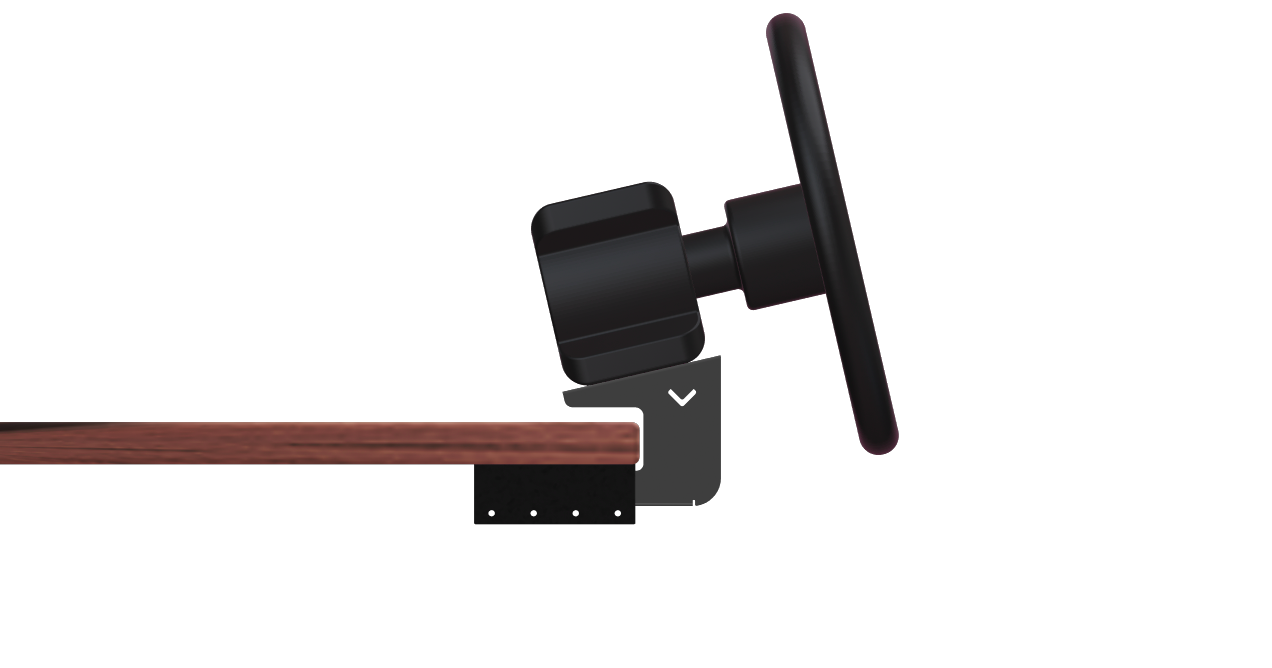

The Racemount 1 is a quick release, desk mount for simulation racing wheelbases. Compatible with any wheelbase within the mounting specifications below

The RM 1 is constructed from aluminum alloy and engineering grade nylon. The aluminum surfaces are bead blasted for a clean, matte finish.

*Orders will ship in 2-3 weeks due to our early stage in production

*Patent pending

Wheelbase Mounting Compatibility

Maximum bolt depth: 90mm

Minimum bolt depth: 40mm

*The mount can be installed to any width.

The desk mount uses slotted holes. Any wheelbase with bolt spacing between the minimum and maximum depth ranges will fit using standard M6 bolts (4‑bolt pattern).

Desk Mounting Compatibility:

• Maximum desk thickness: 39mm (1.53 in)
• Minimum: 19.05mm (3/4 in)


Confirmed manufacturer mounting compatibility:

MOZA: R3, R5, R9, R12, R16, R21, R25

Fanatec: CSL DD QR2, Clubsport DD (+)

Thrustmaster: T818, T598

Logitech: RS50

Simcube: 3, 3 Sport

Don't see your wheelbase? Send us the manufacturers mounting specs and we will make a custom mount free of charge
